PTFE guide ring Sintered OEM guider Shock Absorber Parts Lined with bearing
We are specializing in powder metallurgy,oil bearings,structural parts,gears(sprockets) and different parts
used in automobile and motorcycle.our company boasts fulley-automatic shaping mills, more than 60
finishing machines and about 20 professionals.our products spread out all over the the country, and we
supply components to Korea, America and Japan.
Specifications:
| Model Number | Rod Guide |
| Raw Materials | MPIF FC-0205 |
| Density | 6.2-6.8 g/cm3 |
| Hardness | HRB65-90 |
| Car Make | All Car Rod Guides |
| Process | Powder Metallurgy |
Description:
XIAYI manufactures pistons, valve cases and rod guides which are the main parts of the shock absorber
for 4-wheel and 2-wheel vehicles.
1. Bushing piston ring/PM piston shock absorber parts/sliding bearing
2. Shock absorber parts including bushing, PM piston, rod guide etc.
Product Name
Shock Absorber Rod Guide
Raw Materials: MPIF FC-0205
Feature
1. Density from 6.5-6.7 g/cm3
2. Hardness: HRB 60-100
3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm
4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE
band for piston, Du bearing for rod guide.
5. PPAP III is submitted accordingly.
These products find application in automotive, power tool, power transmission and various other
segments.
Processing
Mixing powder——Forming——Sintering——Sizing——After treatment——Steam treatment——Oil
impregnant——Packing——Shipping
Manufacturability
1. Auto Mechanical Press: 50T, 100T, 140T
2. Hydraulic Press: 100T, 315T, 600T, 800T
3. Six sinter furnaces, including one harden Sinter Furnace
4. Heat treatment: Carbonitriding quenching and high frequency quenching
5. Ultrasonic clearing and auto de-burring
6. In-house tooling making: EDM, wire cutting machine
7. Strength in machining: Machine center, CNC milling, CNC lathe, Two end lapper etc.
Test Ability
1. Carbon sulfur determinator
2. Metallurgic microscope
3. Hydraulic universal material tester
4. Hardness testers
5. Pneumatic measuring instrument
6. Measuring projector
7. Gear testing instrument
8. Electrical profile meter
9. CMM
Competitive Advantage:
1. Well experienced in OEM manufacturing.
2. Many years in the powder metallurgy industry.
3. Professional technology service
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Packing detail
1. 200pcs per carton
2. Carton size: 36.5*22.5*14.5mm
3. Gross weight: 24.5kg
4. Net weight: 24kg
5. Packing dozens of cartons per pallet
6. 6-7 pallets per container

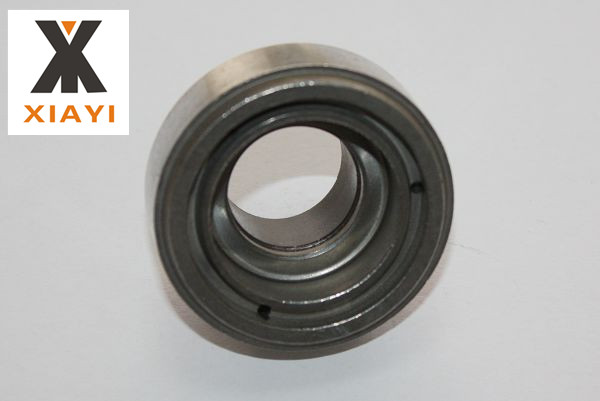

Picture show:
