Sintered Powder Metallurgy Parts Rod Guide With Proper Load Capacity Used In Car Shocks
Material :
(MPIF 35) FC-0205 (DIN 30910-4) Sint C10, Fe, Balance, Cu 1.5-3.9%, C 0.3-0.6%
Density: 6.4-6.9 g/cm3 after steam oxidation
Hardness: 60-115 HRB, loading 1 kN, diameter of ball 1/16"
Surface Treatment:
Steam oxidation, 2 hours, Fe3O4: 0.004-0.005mm, degree of oxidation 2-4%
Unspecified Tolerance:
ISO 2768 - m / H14, h14, +- IT14/2
Apperance:
No crumbling, cracks, exfoliation, voids, looseness, metal pitting and other defects
The sintered part have several major advantages:
(A) High precision due to mold- Based production
(B) Low price due to its inherent feature of automation for mass production
(C) Flexibility of material composition due to wide variety of powder formula on Fe- Cu- Ni alloy
Specifications:
| Material | P/M Copper and Copper Alloys |
| P/M Iron and Carbon Steel |
| Iron And Carbon Steel |
| Iron-Copper And Copper Steel |
| Sinter Hardened Steel |
| Commix Low Alloy Steel |
| Surface treatment | Sand Blasting |
| Zinc/Chrome Plating |
| Rust-preventive treatment (steaming treating) |
| Painting |
| Electrophoresis |
| Powder Coating |
Description:

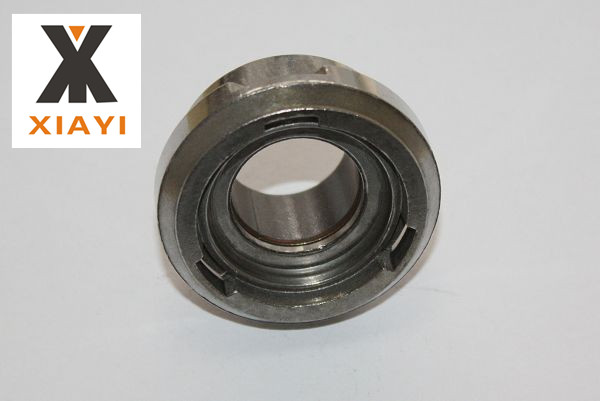

Rod guider
D47XD22.5X21.5
Raw material: F50 U3 60 sinter powder metal
Hardness: 70-90HRB
Density: 6.0g/cm3
Net weight is 101.44g
Our main sinter parts category:
Valve Plate, Helix Gear, Air Cylinder, ABS Sensor Rings
Pulley, shock absorber spare parts, sprocket wheel, Spur Gear
Lock Accessory, Oil Pump Rotors & Gears, Sprocket Wheel
Other Sintered PM Products
Material Available and Chemical Composition:
P/M Copper and Copper Alloys
P/M Iron and Carbon Steel
Iron and Carbon Steel
Iron-Copper and Copper Steel
Iron-Nickel and Nickel Steel
Low Alloy Steel
Commix Low Alloy Steel
Sinter Hardened Steel
Diffusion Alloyed Steel
Copper Infiltrated Iron and Steel
1. XIAYI is a professional powder metallurgy manufacturer.
2. Process: mixing--compacting--sintering--resizing--cleaning--vacuum oiling--packing
3. Material: steel, copper, steel copper, bronze, alloy.
4. High precision, 100% test assure good quality
5. We can make the products according to customers' drawings or requirement.
6. Short deliver time.
7. The products we produce are widely used in automobile, motorcycle and many other fields like
transmission gear, spur gear, bevel gear, helical gear, sleeve, copper sleeve, sleeve bearing, bushing,
bush, pulley, timing pulley, structural parts, powder metallurgy parts, nut, auto parts, sintered parts, rotor
and stator etc.
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
1. Very tight tolerance and high density
2. Uniform heat treatment and steam treatment
3. Precise metal-working finishing
4. Higher mechanical performance
5. Professional technology service
